Overview

7 Buildings • 550,995 SF

Building 1 (Pilot Plant) • 147,876 RSF
Building 2 (Pharma Development Laboratory Building) • 86,187 RSF
Building 6* (Drug Evaluation Lab) • 109,660 SF
Building 9* (Drug Safety Evaluation Lab) • 100,145 SF
Building 15 (Scale-Up Lab) • 47,378 SF
Nodes 1 • 28,865 SF
Nodes 2 • 30,884 SF

Available - Office North.jpg

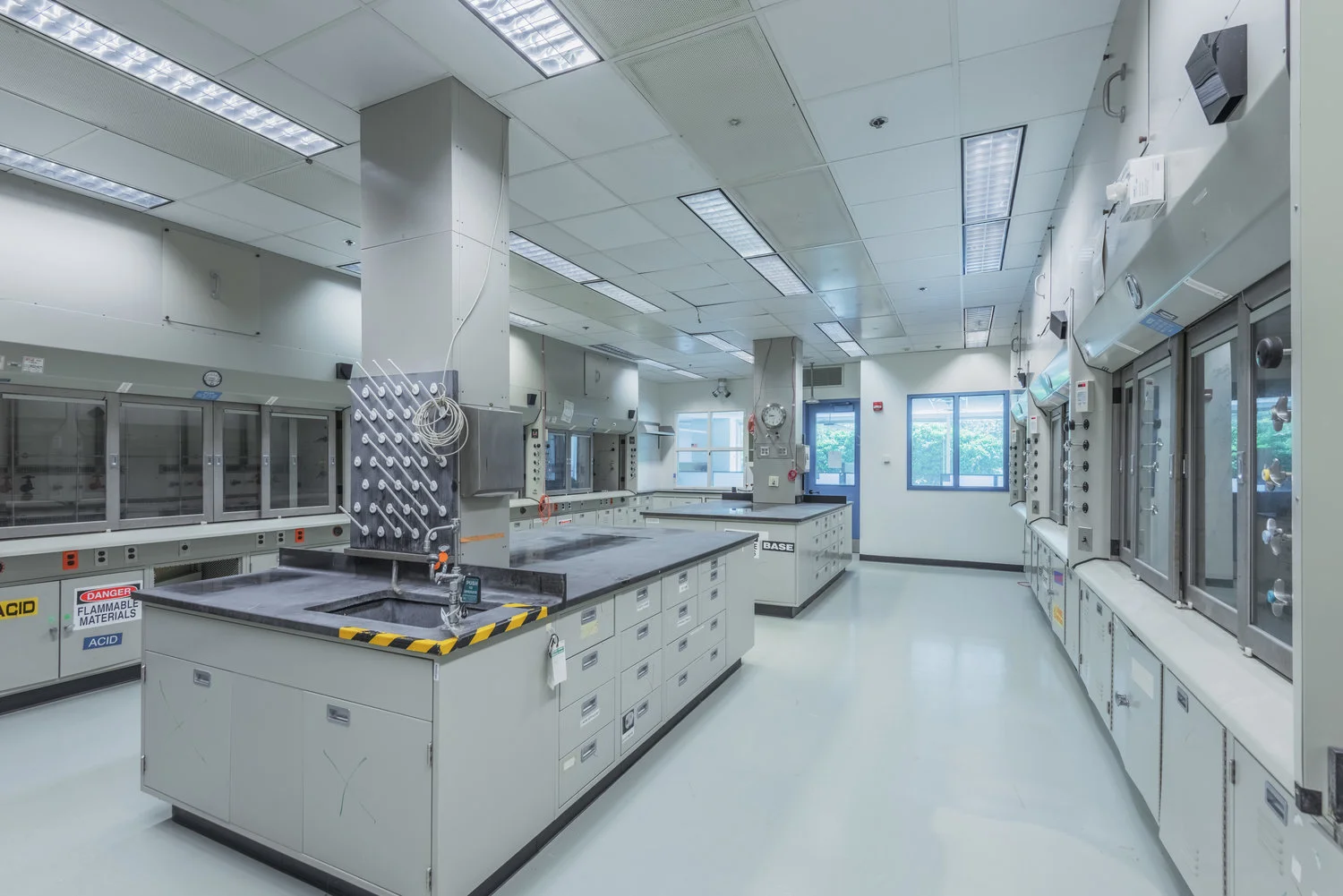

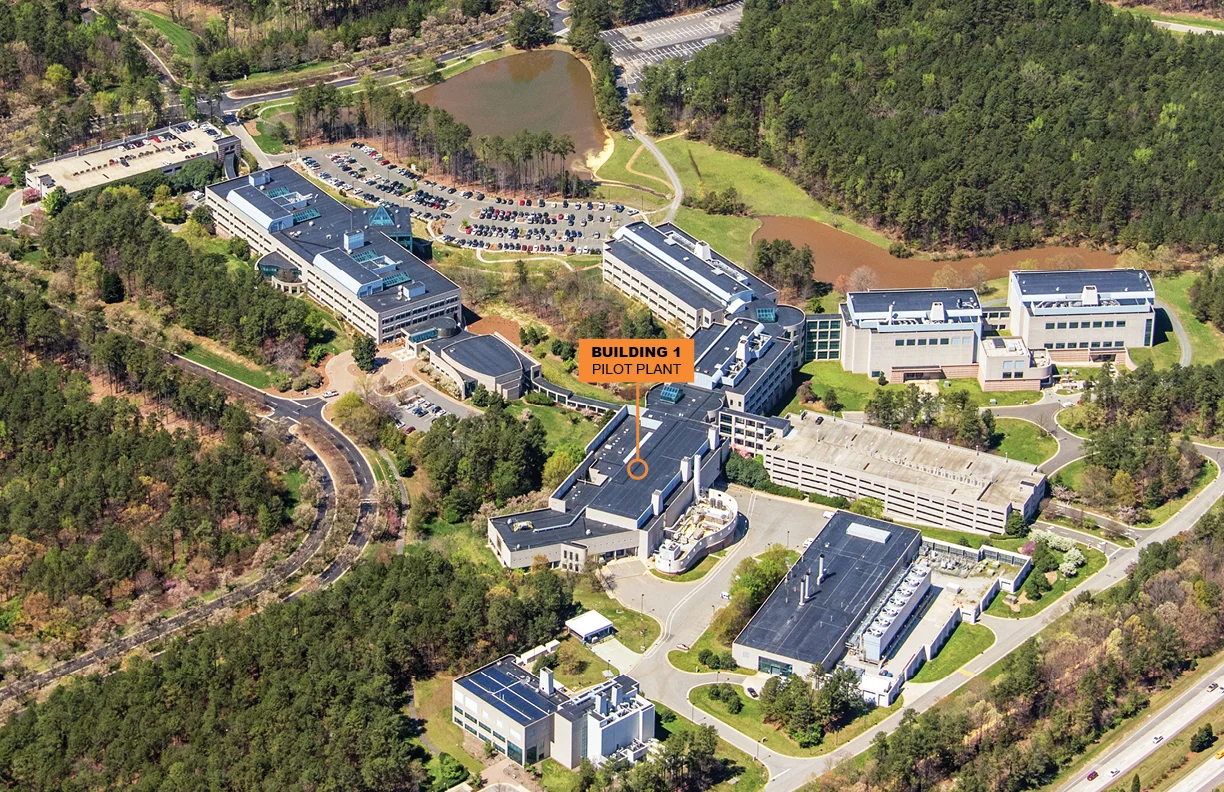

Building 1

Pilot Plant

Space Type: Lab

Size: 147,876 RSF

Laboratory And Pharmaceutical Production Space; 4 Stories; 15 Stability Chambers

The Pilot Plant is Class A, steel frame construction and contains mostly laboratory and pharmaceutical production space. The floors are epoxy terrazzo throughout the lab and production spaces. All of the production and laboratory spaces are serviced with once-through HVAC with airlocks in the production area. The building also houses 15 stability chambers for product testing. The four story building also has a basement that contains shipping and receiving space and hazardous material storage. There are six dock height doors servicing two sides of this building. The building contains the “pharmacy” for the campus, which has similar finishes to the production space.

The basement area contains the shipping, receiving, and hazardous waste. Floors one and two contain the laboratory, production area, some general support office, and the pharmacy. Floor three contains all of the mechanical for the air handlers and dehumidifiers. Floor four contains all of the exhaust and HEPA filters.

All ventilation air is once through. Approximately 32 supply air systems combined with approximately 53 exhaust systems provide specific controlled ambient conditions in the operating areas of the building. Several of these supply systems include special dehumidification capability to meet various space and process requirements.

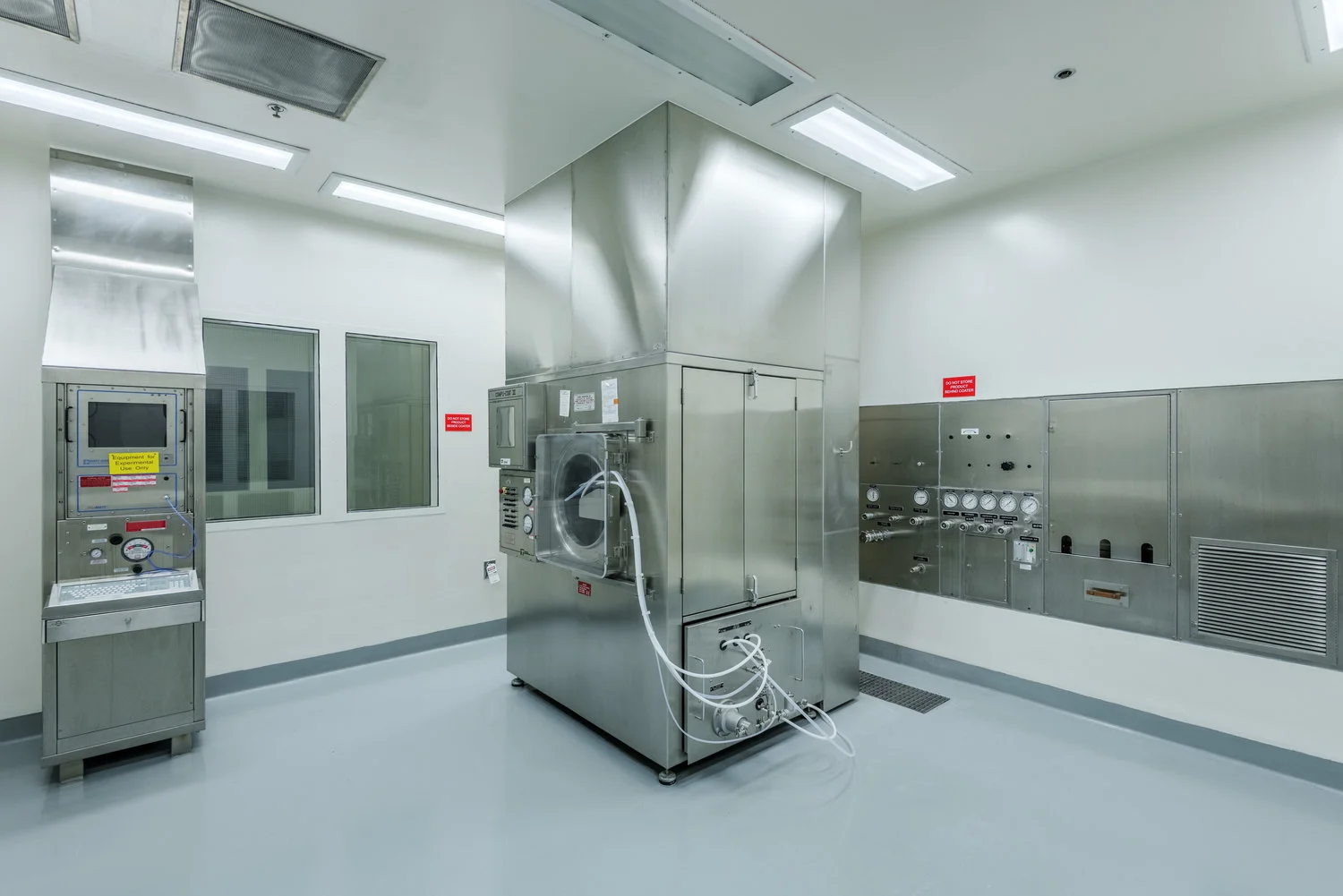

There is also an aseptic suite in the production area that was constructed to develop and manufacture injectable pharmaceuticals. This area is currently utilized as storage.

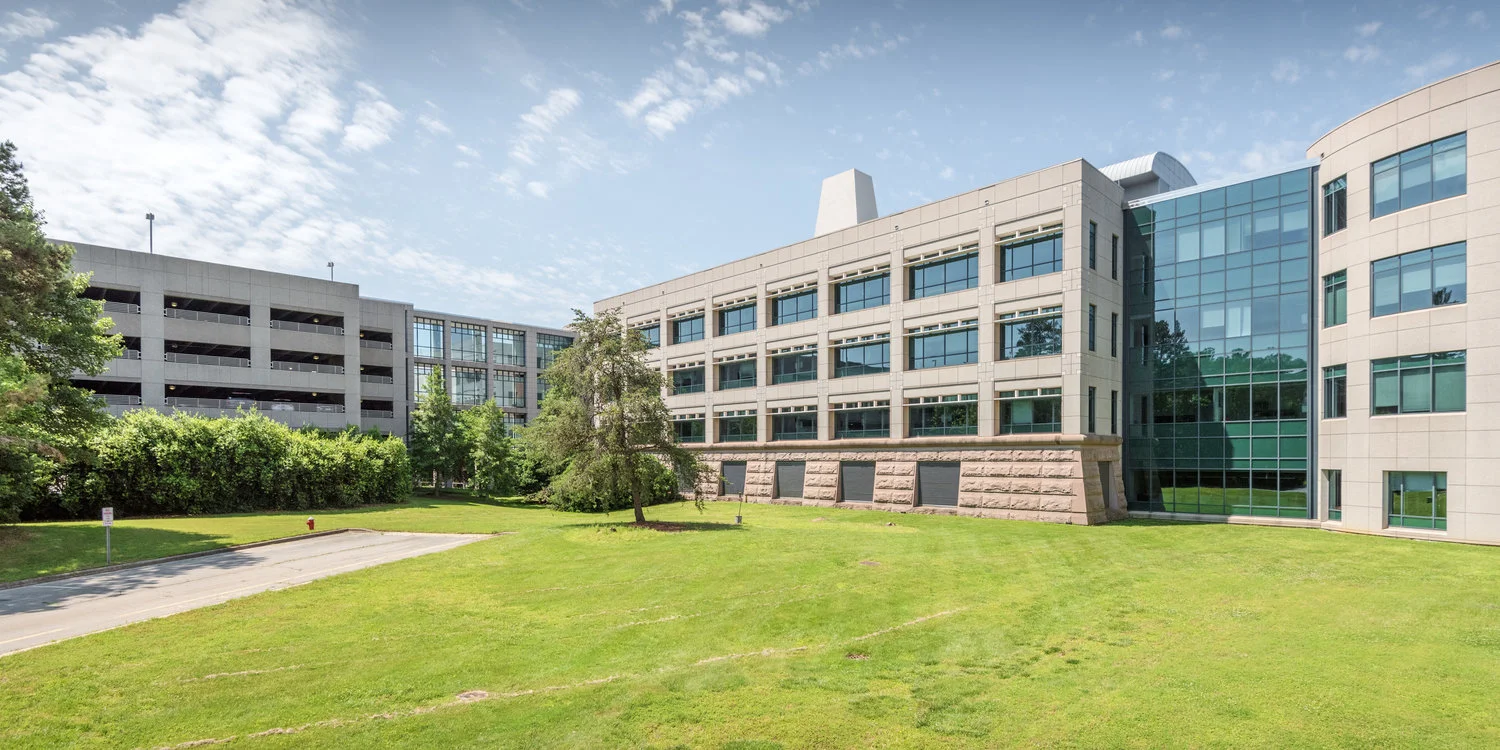

Building 2

Pharma Development Laboratory Building

Space Type: Lab

Size: 86,187 RSF

Majority Lab Space; 4 Stories; Bsl-2 Rated Labs; Glassware Washing Facility and Waste Neutralization Systems

Building 2 is connected to Building 1 and Building 5 (not included in this offering) via Node 1. This laboratory building is four-stories, Class A, steel frame construction and contains mostly laboratory space. The floors are a mix of VCT and epoxy terrazzo. All of the laboratory spaces are serviced with once-through HVAC with airlocks into some of the lab areas. Building 2 contains six laboratory modules. The labs in this building are rated BSL-2 (Bio Safety Level 2).

The building has housed formulation development, DMPK and analytical support functions. The lower level of the building is divided with approximately 40% of the space as mechanical support and the remainder as circulation and labs. The upper three floors utilize a central corridor for lab supply and access with the write up spaces located around a secondary circulation corridor on the perimeter of the building. The penthouse floor is dedicated to mechanical support.

The labs are designed around a standard footprint which can be modified for specialty uses. Most of the lab modules include an auxiliary lab which can be open to the main lab, segregated by a door or accessed only from the central corridor. The lab itself is separated from the write up area by a wall that typically has windows for viewing into the space and doors for access. Some areas utilize a full glass wall for improved visibility into the lab. In addition to the standard lab module, each floor has some 1/2 size labs that can be used as common equipment or support labs. The labs on the bottom floor do not follow the pattern of the upper floors as they are intended to accommodate processes utilizing heavy or specialty equipment.

SPECIALTY EQUIPMENT AND FACILITIES: Central Glass Wash, typically each lab has two specialty gas connections, fed from bottled gas in storage cabinets located off of the central corridor, Labs designed to maintain negative pressurization to surroundings, Labs designed for 200 psf floor loading, Concrete Structure.

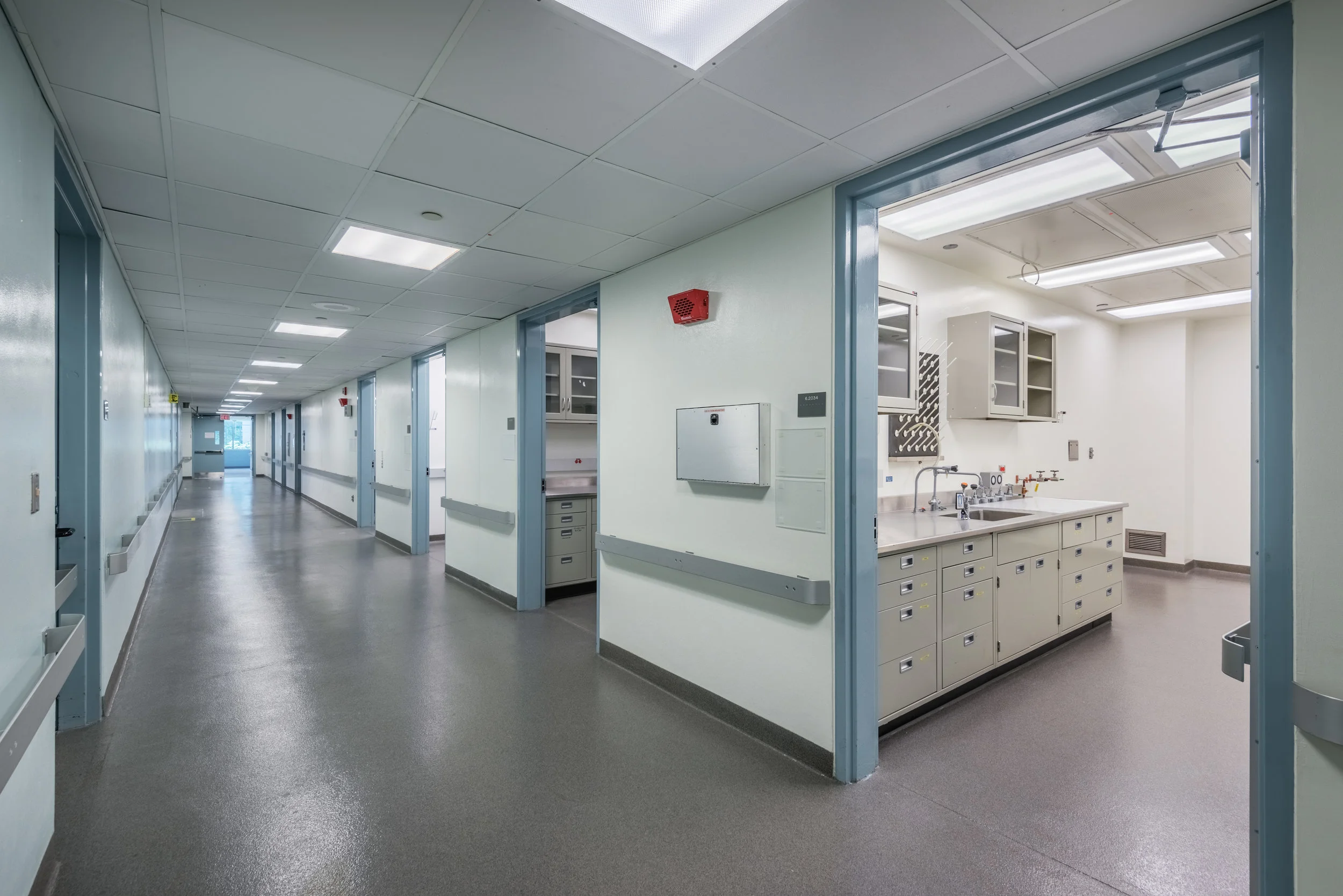

Building 6*

Drug Evaluation Lab

Space Type: Lab (able to be converted to office space*)

Size: 109,660 RSF

Building 6 is connected to Building 2 and Building 3 via Node 2. This laboratory building is four-stories, Class B, and has reinforced concrete frame construction. The floors are mostly epoxy terrazzo. All of the laboratory spaces are serviced with once-through HVAC. The majority of this space is not utilized at capacity.

Total Floors: 6 (5 above grade)

Utilities: Steam, Chilled Water, RO Water, Utility and Backup Power, UPS Power, Hot and Cold Domestic Water, Sanitary Sewer, Lab Waste Neutralization

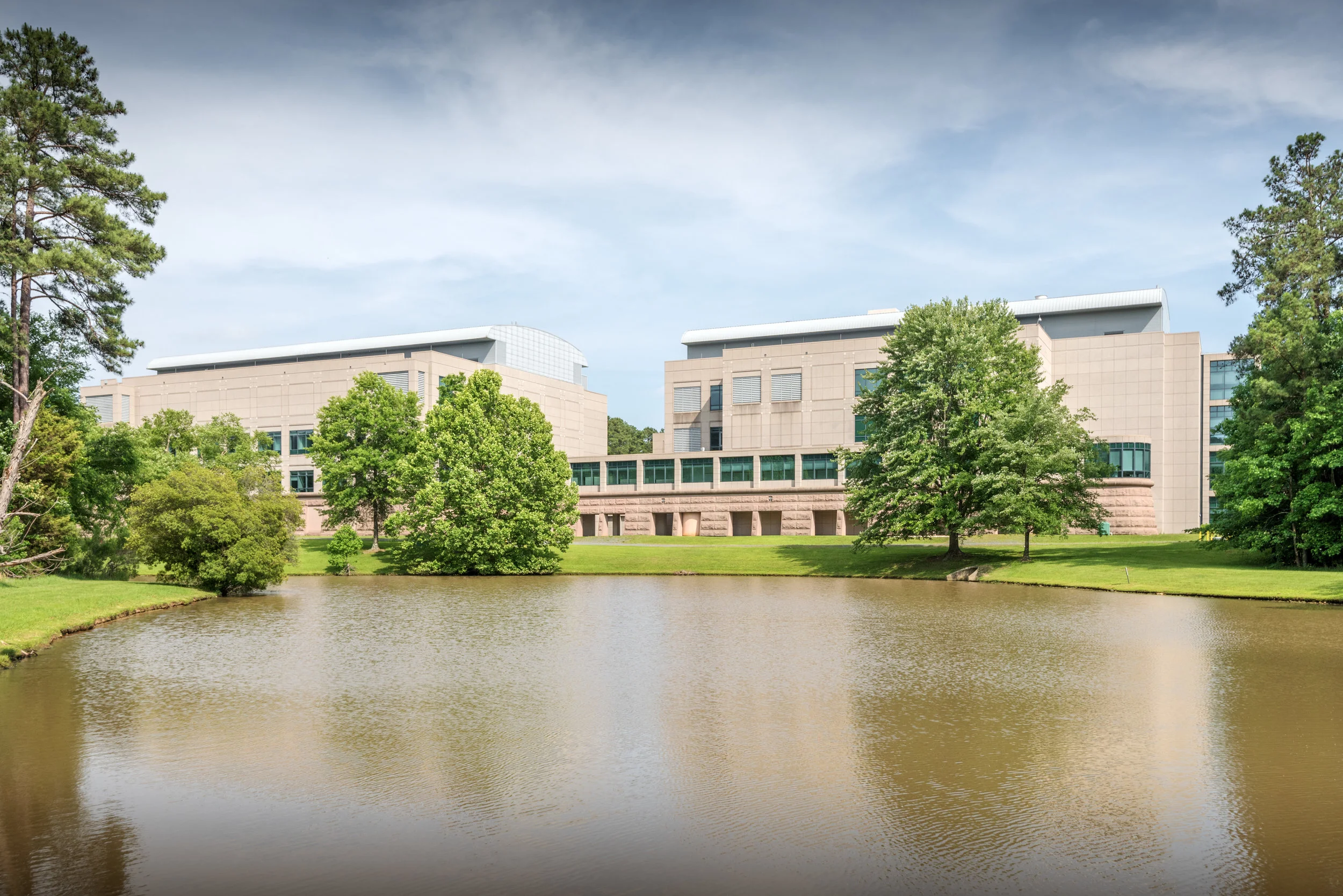

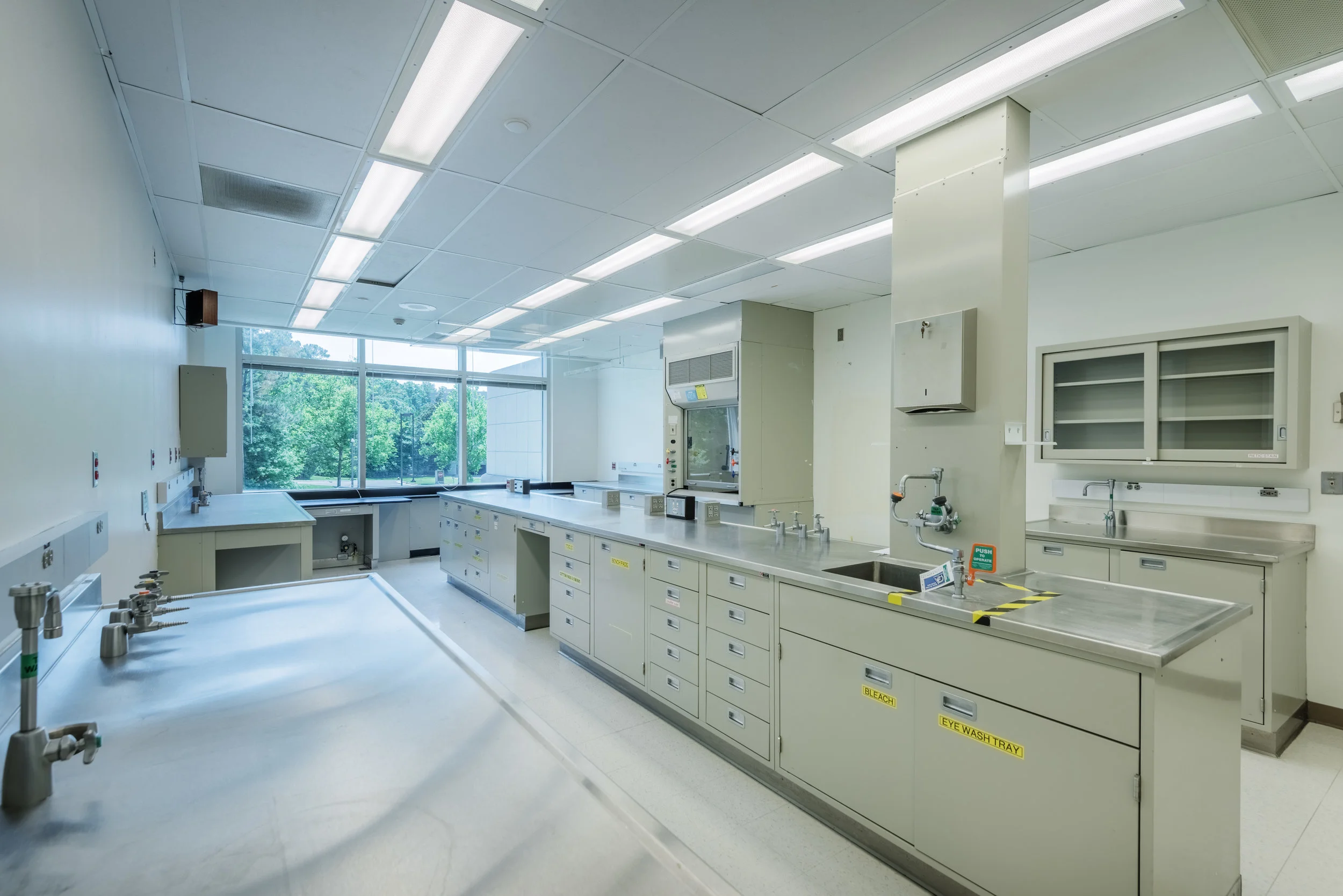

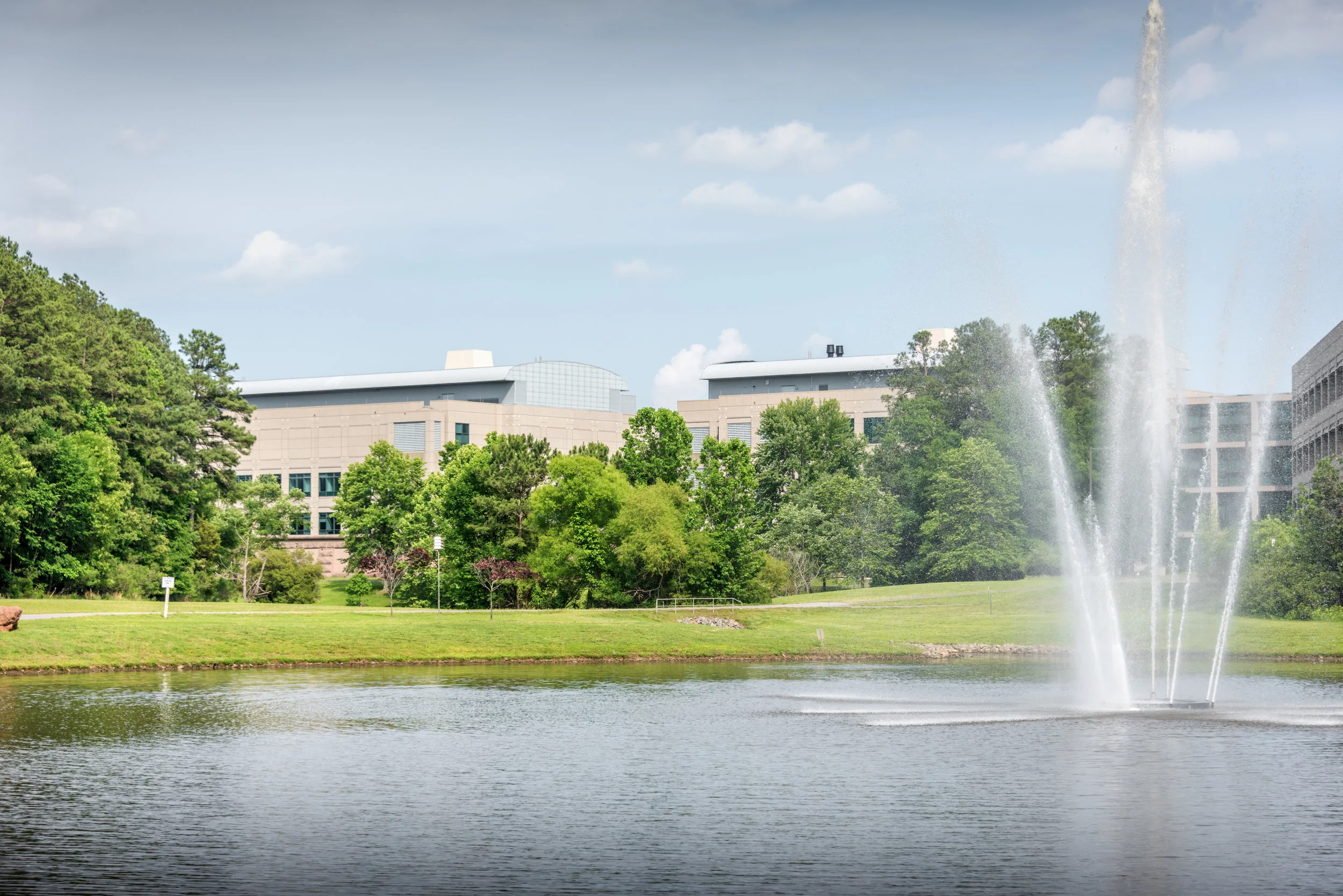

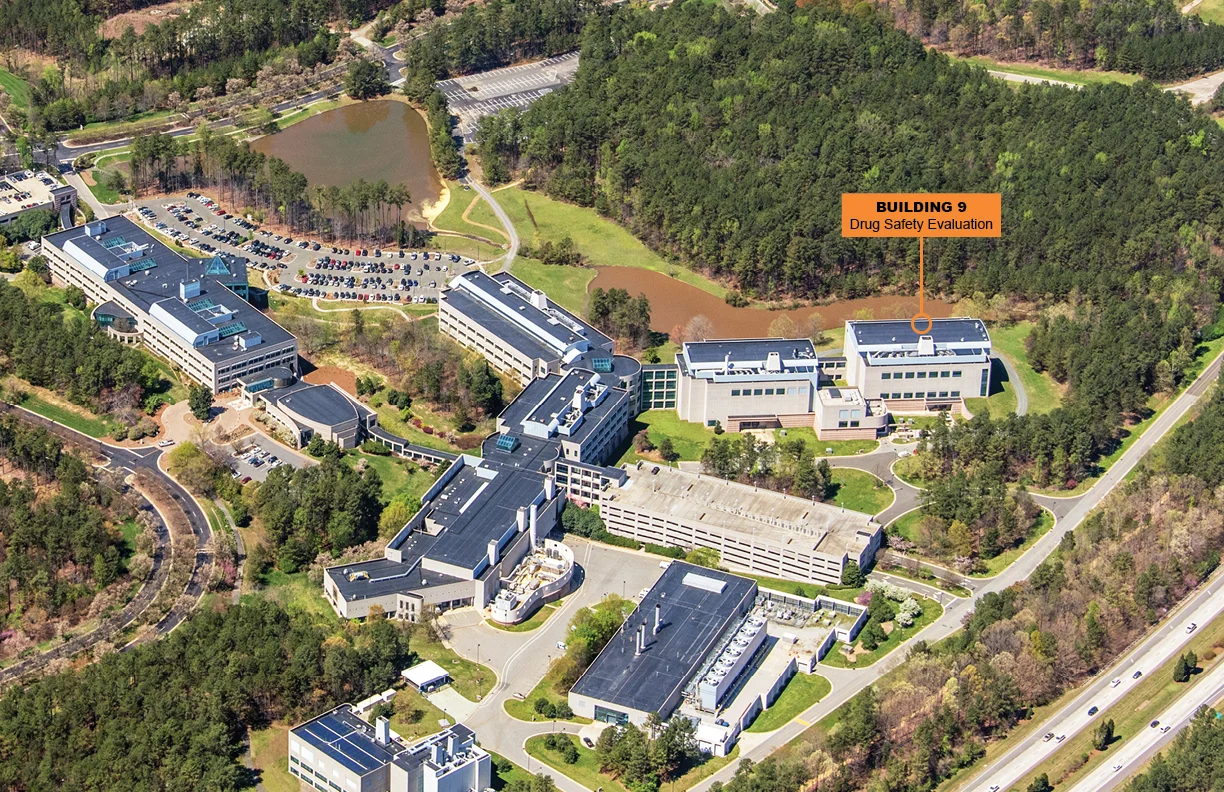

Building 9*

Drug Safety Laboratory

Space Type: Lab (able to be converted to office space*)

Size: 100,145 RSF

Building 9 is connected to Building 6 and Building 11. This laboratory building is four-stories, Class B, and has reinforced concrete frame construction. The floors are mostly epoxy terrazzo. All of the laboratory spaces are serviced with once-through HVAC.

Total Floors: 5 above grade

Utilities: Steam, Chilled Water, RO Water, Utility and Backup Power, UPS Power, Hot and Cold Domestic Water, Sanitary Sewer, Lab Waste Neutralization

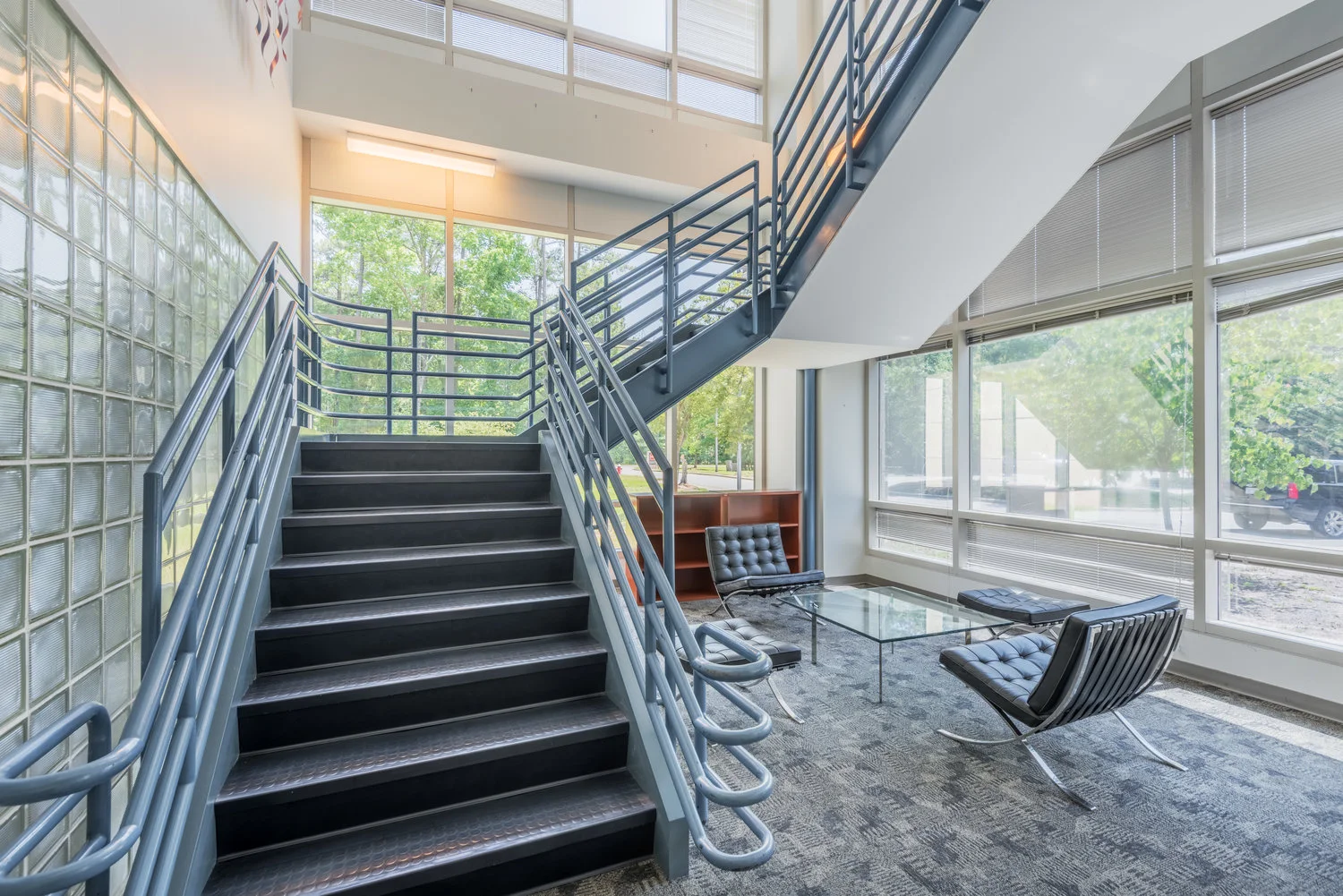

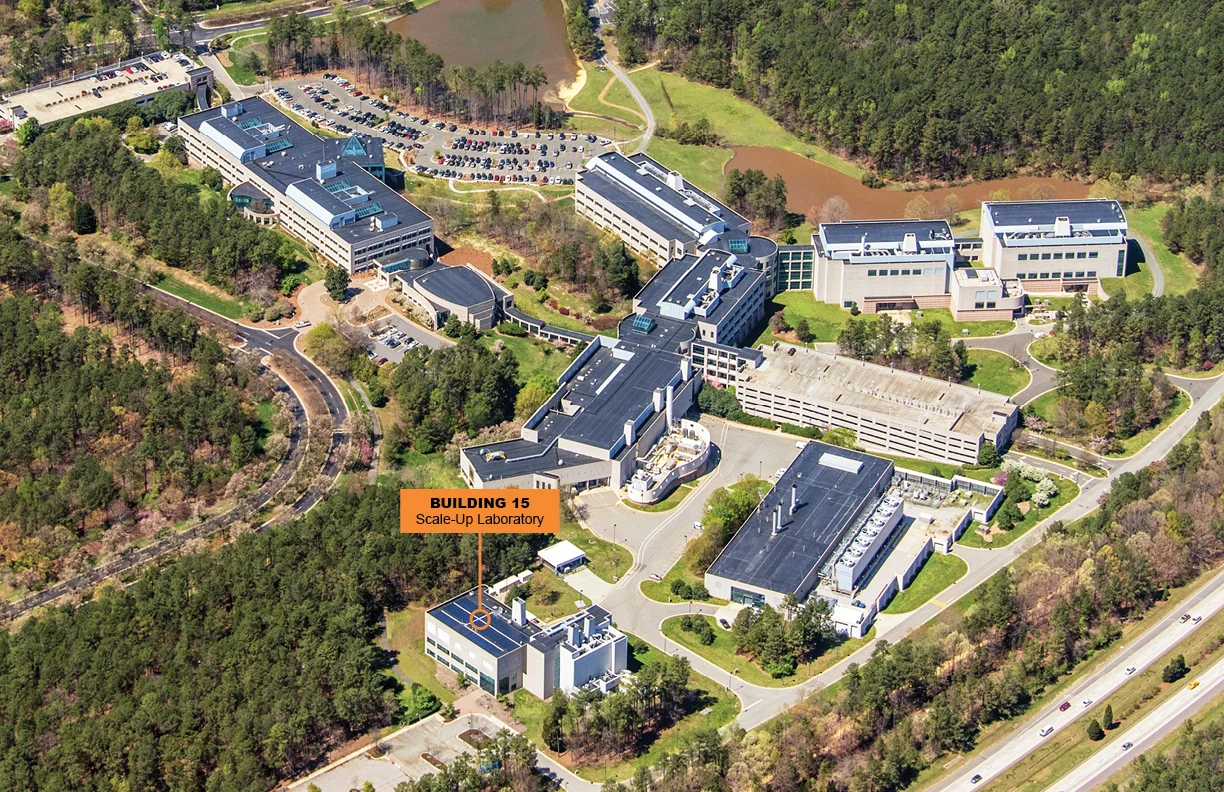

Building 15

Scale-Up Laboratory

Space Type: Lab

Size: 47,378 RSF

Operational Lab Space; Three-Stories; synthetic chemistry labs with walk-in fume hoods

Building 15 is a two to four-story laboratory and office building. It is a Class A, steel frame building that was built for use as a scale-up lab. This building has operational laboratory space on the two-story side but the four story side was never completed. This side was to be utilized for scale-up production and was never built-out. This portion of the building is in shell condition.

Parmer RTP Campus Amenity located at Building 15: State-of-the-art fitness facilities, including men and women’s locker rooms, rock climbing wall, and slide will be coming soon!

Nodes 1 & 2

Nodes 1 & 2

Space Type: Office

Node 1 Size: 28,865 RSF

Node 2 Size: 30,884 RSF

Four-story building “connectors” with multi-use functional space (offices, conference facilities and break areas to support the lab buildings)

The nodes are similar construction as the adjoining buildings.
